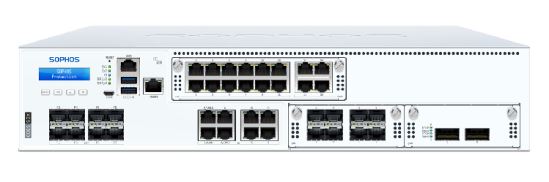

Sophos XGS 5500 hardware firewall 2U 100 Gbit/s

Sophos XGS 5500. Firewall throughput: 100 Gbit/s, Firewall (IMIX) throughput: 52 Gbit/s, IPSec VPN throughput: 92.5 Gbit/s. Heat dissipation: 573.81 BTU/h. Connectivity technology: Wired, Remote management port: RJ-45 (Gigabit). Form factor: 2U, Display: LCD. AC input voltage: 100-240 V, AC input frequency: 50/60 Hz, Power consumption (typical): 168 W
Manufacturers: Sophos, INC. , Sophos
SKU: 6250928
Manufacturer part number: IG5E5CSUS
XGS Series Next-Gen Firewall Appliances
Enterprise and Campus Edge: 2U Models

Distributed and growing enterprises in need of maximum throughput for the most complex networks get the ultimate in protection, performance, and business continuity with these next-gen firewalls. Xstream Flow Processors provide dedicated hardware acceleration to easily handle full-on protection for today’s encrypted, cloud-hosted applications and traffic. These models strike the perfect balance between port density and modularity, with a range of high-speed, built-in ports, plus additional high-density Flexi Port modules available to extend connectivity even further.



  • Engineered for no-compromise performance
  • Dual-processor architecture with dedicated co-processor for enterprise-grade hardware acceleration
  • High-performance Non-Volatile Memory Express (NVMe) SSDs for better compatibility and storage (XGS 7500/8500 only)
  • Sufficient headroom to power all key threat protection features, such as TLS inspection, sandboxing, and AI-driven threat analysis
  • Extremely competitive ROI per protected Mbps
  • A range of standard 1 GE copper interfaces plus 8 to 12 SFP+ 10 GE fiber interfaces on every model
  • QSFP28 interfaces on high-end models with port speeds of up to 40 Gbps (XGS 7500) and 100 Gbps (XGS 8500)
  • Maximum port density of 48 (XGS 5500), 68 (XGS 6500), or 70 (XGS 7500/8500) using optional modules
  • Redundancy features on all models to help ensure business continuity
XGS Series Next-Gen Firewall Appliances
Enterprise and Campus Edge: 2U Models

Distributed and growing enterprises in need of maximum throughput for the most complex networks get the ultimate in protection, performance, and business continuity with these next-gen firewalls. Xstream Flow Processors provide dedicated hardware acceleration to easily handle full-on protection for today’s encrypted, cloud-hosted applications and traffic. These models strike the perfect balance between port density and modularity, with a range of high-speed, built-in ports, plus additional high-density Flexi Port modules available to extend connectivity even further.



  • Engineered for no-compromise performance
  • Dual-processor architecture with dedicated co-processor for enterprise-grade hardware acceleration
  • High-performance Non-Volatile Memory Express (NVMe) SSDs for better compatibility and storage (XGS 7500/8500 only)
  • Sufficient headroom to power all key threat protection features, such as TLS inspection, sandboxing, and AI-driven threat analysis
  • Extremely competitive ROI per protected Mbps
  • A range of standard 1 GE copper interfaces plus 8 to 12 SFP+ 10 GE fiber interfaces on every model
  • QSFP28 interfaces on high-end models with port speeds of up to 40 Gbps (XGS 7500) and 100 Gbps (XGS 8500)
  • Maximum port density of 48 (XGS 5500), 68 (XGS 6500), or 70 (XGS 7500/8500) using optional modules
  • Redundancy features on all models to help ensure business continuity
Products specifications
Attribute nameAttribute value
Width17.2"
Depth25.4"
Height3.46"
Weight39.2 lbs
DisplayLCD
Maximum firewall connections per second468000
Heat dissipation573.81 BTU/h
Remote management portRJ-45 (Gigabit)
Firewall latency5 µs
Firewall (IMIX) throughput52 Gbit/s
IPSec VPN throughput92.5 Gbit/s
SSL inspection throughput13500 Mbit/s
Threat protection throughput14000 Mbit/s
Concurrent SSL/VPN connections (maximum)15000
10G Ethernet (copper) ports quantity8
Packaging data
Package weight59.5 lbs
Ports & interfaces
Connectivity technologyWired
Gigabit Ethernet (copper) ports quantity8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Design
CertificationCB, CE, UKCA, UL, FCC, ISED, VCCI, BSMI, RCM, NOM, Anatel, KC, CCC, SDPPI Planned: TEC
Form factor2U
Built-in displayYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 90 %
Power
Power consumption (typical)168 W
AC input frequency50/60 Hz
AC input voltage100-240 V
Power consumption (max)478.01 W
Other features
Rack mountingYes
Performance
Concurrent connections32400000
Data transmission
Firewall throughput100 Gbit/s
IPS/IDS throughput40000 Mbit/s
