Panorama Antennas LPB-6-60-1SP network antenna Omni-directional antenna SMA 9 dBi1

Panorama Antennas LPB-6-60-1SP network antenna Omni-directional antenna SMA 9 dBi

Panorama Antennas LPB-6-60-1SP. Antenna gain level (max): 9 dBi, Frequency band: 0.617 - 0.96 / 1.71 - 6 GHz, Gain: 9 dBi. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Connector gender: Male. Width: 1.89" (48 mm), Depth: 1.89" (48 mm), Height: 3.23" (82 mm)

Manufacturers: PANORAMA ANTENNAS, INC. , Panorama Antennas

SKU: 5818712

Manufacturer part number: LPB-6-60-1SP

Description

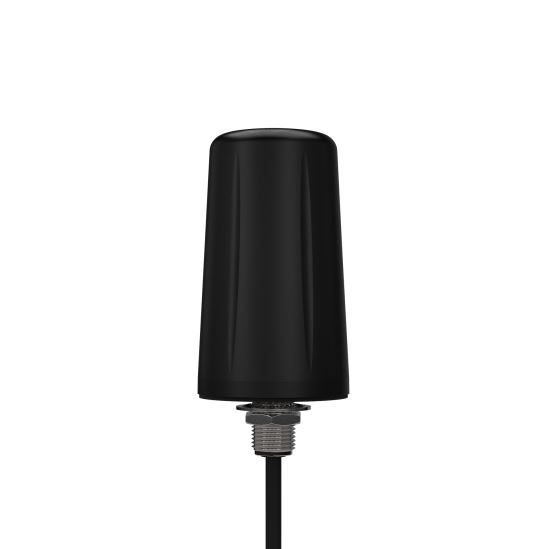

The LPB-6-60 antenna is a cost effective Omni-directional panel mount antenna for 4G/3G/2G and 5G devices from 617-960/1710-6000MHz. The LPB-6-60 is supplied with integrated 5mm double shielded CS29 coaxial cable and is available with a wide variety of connectors fitted. This Antenna is an ideal solution for use in industrial and domestic environments with cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications. This LPB-6-60 requires a conductive ground plane of >300mm (1′) diameter for optimal performance or it can be bracket mounted (p/n B4BE-6-60).

Products specifications

Attribute name	Attribute value
Width	1.89"
Depth	1.89"
Height	3.23"
Antenna Type	Omni-directional antenna
Cable Length	39.4"
Gain	9 dBi
Technical details
Product color	Black
Operational conditions
Operating temperature (T-T)	-40 - 85 °C
Features
International Protection (IP) code	IP66
Performance
Connector gender	Male
Antenna
Antenna gain level (max)	9 dBi
Antenna connector type	SMA
Wireless LAN features
Frequency band	0.617 - 0.96 / 1.71 - 6 GHz
