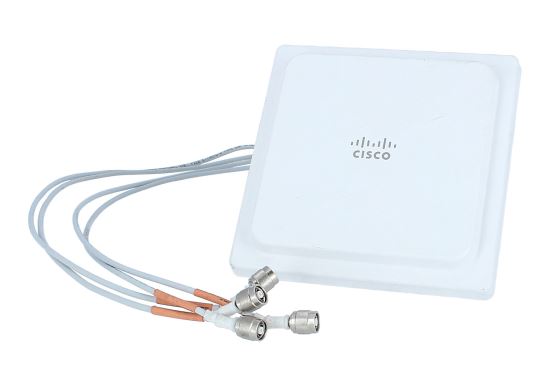

Cisco AIR-ANT2524V4C-RS= network antenna Omni-directional antenna RP-TNC 4 dBi1

Cisco AIR-ANT2524V4C-RS= network antenna Omni-directional antenna RP-TNC 4 dBi

Cisco AIR-ANT2524V4C-RS=. Antenna gain level (max): 4 dBi, Frequency band: 2.4/5 GHz, Gain: 4 dBi. Antenna type: Omni-directional antenna, Antenna connector type: RP-TNC, Polarization: Linear polarization. Width: 7.24" (184 mm), Depth: 0.984" (25 mm), Height: 7.24" (184 mm). Quantity per pack: 1 pc(s)

Manufacturers: Cisco Systems , Cisco

SKU: 5963926

Manufacturer part number: AIR-ANT2524V4C-RS=

GTIN: 0889728277464

The Cisco Aironet AIR-ANT2524V4C-RS= Dual-Band Omnidirectional Wi-Fi Antenna is designed with improved performance in mind. It provides a 360-degree radiation pattern and is intended for deployment when coverage in all directions is required. This FCC-approved omnidirectional antenna includes circuitry to enable self-identification of the antenna by the Cisco Catalyst 9100 Access Points.

OMNIDIRECTIONAL WI-FI ANTENNA: 2 dBi (2.4 GHz)/4 dBi (5 GHz), 4 dual-band ports; designed for dual-band port access points such as the Aironet 1830, 1850, 2800and 3800 Series and Cisco Catalyst 9115AX, 9120AX and 9130AX Series
CONNECTION AND MOUNT: 4 plenum-rated pigtail cables with 4 RP-TNC connectors; ceiling mount (hardware included)
360-DEGREE RADIATION PATTERN: Intended for deployment when coverage in all directions from the antenna is required
PERFORMANCE: Designed for improved coverage
PEACE OF MIND: 1-year limited hardware warranty

OMNIDIRECTIONAL WI-FI ANTENNA: 2 dBi (2.4 GHz)/4 dBi (5 GHz), 4 dual-band ports; designed for dual-band port access points such as the Aironet 1830, 1850, 2800and 3800 Series and Cisco Catalyst 9115AX, 9120AX and 9130AX Series
CONNECTION AND MOUNT: 4 plenum-rated pigtail cables with 4 RP-TNC connectors; ceiling mount (hardware included)
360-DEGREE RADIATION PATTERN: Intended for deployment when coverage in all directions from the antenna is required
PERFORMANCE: Designed for improved coverage
PEACE OF MIND: 1-year limited hardware warranty

Products specifications

Attribute name	Attribute value
Country of Origin	Malaysia
Width	7.24"
Depth	0.984"
Height	7.24"
Weight	20.8 oz
Mounting	Ceiling
Antenna Type	Omni-directional antenna
Gain	4 dBi
Polarization	Linear polarization
Antenna gain (2.4 GHz)	2 dBi
Antenna gain (5 GHz)	4 dBi
Packaging data
Package width	7.67"
Package depth	8.5"
Package height	3.86"
Package weight	27.2 oz
Operational conditions
Operating temperature (T-T)	0 - 56 °C
Packaging content
Quantity per pack	1 pc(s)
Antenna
Antenna gain level (max)	4 dBi
Antenna connector type	RP-TNC
Wireless LAN features
Frequency band	2.4/5 GHz
